#215 & 215a, 32.1' x 10'

Main Views (pdf)
Show More

Lineage:

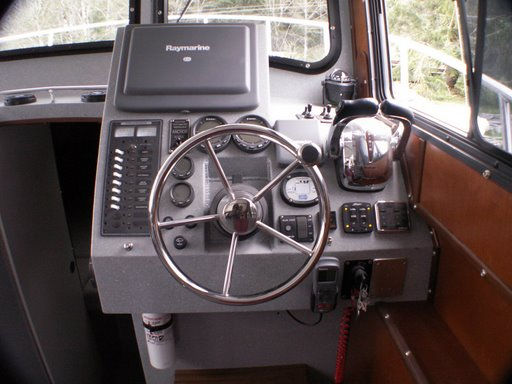

This 32' fish/cruise design kit has been built by Norvelle Boats in different house arrangements and both with and without flybridges.  It is part of the acclaimed "Explorer" and "Offshore" line of boats built by Norvelle in the 26' to 32' range (and even a one-off 42'), all designed by Response Marine.  While we are proud of the foundational hull and house, these boats are really brought to excellence by the talent and dedication of David Norvelle and his crew.  Power has ranged from twin 150's to twin 300's.  As with our other builder-specific designs this one features a few aesthetic details that are specific to Norvelle and are altered in kits for others.  Above photos courtesy of Norvelle Boats.

Particulars:

Length (hull):

  Beam (hull):

Wt. as rigged:

Wt. Bare Hull:

Deadrise Angles-

  Transom:

        Sta. 4:

  Cutwater:

32' - 1" w/o bracket)

 10' - 0" (w/o rub rails)

8,528 (twin 150hp outboards)

5,052 (w/ house)



13

24.5

55

Scantlings:

Bottom:

Bot. Stringers:

Chine Flats:

Sides:

Side Stringers:

Decks:

Transverse Frames:

Transom:

Keelson:

.250"

Girder & 4" x .250"

.375"

.190"

 Shelf & 3" x .250"

.190"

.190", Flanged

.250"

.375" x 6"

Stock Weight (approx.)-

                    Blank Plate: 6,858# (w/ house & Flybridge)

                       Extrusion: varies

Stock List- plate (pdf)

Parts List (pdf)
