#300-18;  18' x 8.1'  Flat Bottom

Main Views (pdf)
Study Dwgs & Lists (pdf)
Show More

Lineage:

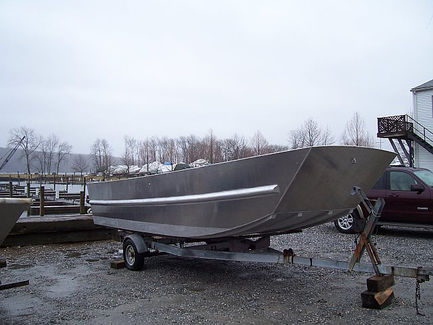

This 18' flat bottomed, hull design has been built by Chester Boatworks in various gunwale configurations, including one with 20" wide gunwales, and both with and without a console.  It is the same hull as our #300 but with 2.2' trimmed from the stern.  As with most of our flat-bottomed landing craft the bottom has 3" x 1 1/2" (deep) channels running fore and aft along the bottom.  These channels provide panel stiffening and protection, but they also improve tracking and efficiency- the latter by virtue of trapping air between the channels at speed.

To date it has been built with a closed bow, but it is also a candidate for a landing craft bow.

The NC cutting kit is available with or without a fuel tank, helm console and leaning post, and of course custom design kits with any degree of changes are available.

Particulars:

Length (hull):

  Beam (hull):

Wt. as rigged:

Wt. Bare Hull:



Deadrise Angles-



18' - 0"

  8' - 1 1/2" (w/o rub rails)

1,865# (30 hp tiller OB)

1,686#

 Flat Bottom

Scantlings:

Bottom:

Bot. Stringers:

Sides:

Side Stringers:

Decks:

Transverse Frames:

Transom:

.190" w/ 3"x1.5" Channels

.190" Girders, flanged

.190"

3" Split Pipe Strake

.190"

.190", flanged

.250"

Stock Weight (approx.)-

    Blank Plate: 1,630# (hull)

    Extrusion: 361#
