Lineage:

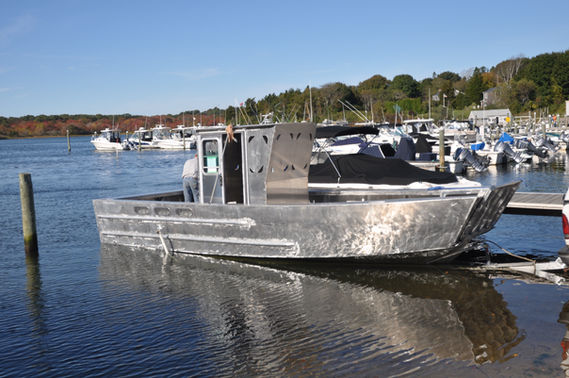

This jet landing craft hull kit was developed for a northeastern US customer for lobstering and fishing.

Features include our "built-down pod" arrangement for the jet installation which optimizes deck height and provides integral bilge skegs.  The Volvo D6 engine is equipped with a reverse gear for backflushing and coupled to the Hamilton Jet with a short stub shaft.

Particulars:

Length (hull):

  Beam (hull):

Wt. as rigged:

Wt. Bare Hull:

Deadrise Angles-

  Transom:

        Sta. 4:

  Cutwater:

25' - 11"

  9' - 8 1/2" (w/o rub rails)

6,195# (Volvo D6 w/ Jet)

3,083# (w/ house)



14

22

54

Scantlings:

Bottom:

Bot. Stringers:

Sides:

Side Stringers:

Chine Flats:

Decks:

Transverse Frames:

Transom:

Keelson:

.250"

4" x .250"

Channels

3" x .250"

.250"

.190"

.190" flanged

.250"

4" x .375"

Stock Weight (approx.)-

                    Blank Plate: 4,700# (w/ house)

                       Extrusion: 485#
