#550, 18' 5" x 7' 2", Shallow Vee

Main Views (pdf)
Study Dwgs & Lists (pdf)
Show More

Lineage:

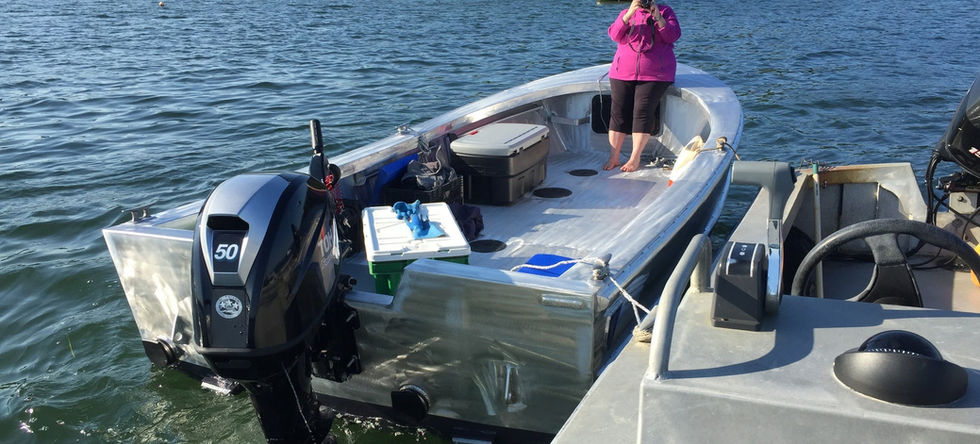

The first of these was built by Winninghoff Boats as a utility boat for transporting crabs in shallow bays and across a very shallow bar.  It is a low deadrise hull with relatively high cargo capacity.  For improved tracking, the hull has a pair of bilge skegs- a shallower draft option than a single, centerline skeg.  Despite the shallow draft, the forward sections have a decent amount of deadrise for comfort in a chop. (Photos courtesy of Jay Harrington & Winninghoff Boats.)

Particulars:

Length (hull):

  Beam (hull):

Wt. as rigged:

Wt. Bare Hull:

Deadrise Angles-

  Transom:

        Sta. 4:

  Cutwater:

18' - 5"

  7' - 1 1/2" (w/o rub rails)

1,850# (50hp OB, batt sys.)

1,480#



3

11

47

Scantlings:

Bottom:

Bot. Stringers:

Chine Flats:

Sides:

Side Stringers:

Decks:

Transverse Frames:

Transom:

Keelson:

.190"

3" x 1.41" ext. Channels

.375"

.190"

2" or 2.5" Split Pipe

.190"

.190" Full Depth, Flanged

.250" Benches

.375" x 4.5"

Stock Weight (approx.)-

                    Blank Plate: 1,800#

                       Extrusion: 200#
